TL-302 Name：TL-302
Download：Click to download
Update：2012-2-17

Product Introduction



TL302A

 TL302B

TL302 Thermostats are used to control room temperature in  commercial, industrial and residential environment via controlling  fan coil units and water valve of heating only,cooling only and heating/cooling central air-condition and system thereof, and then detect the room temperature amongst the set-point. The rate which is indicated by index(pin) is the temperature you want.

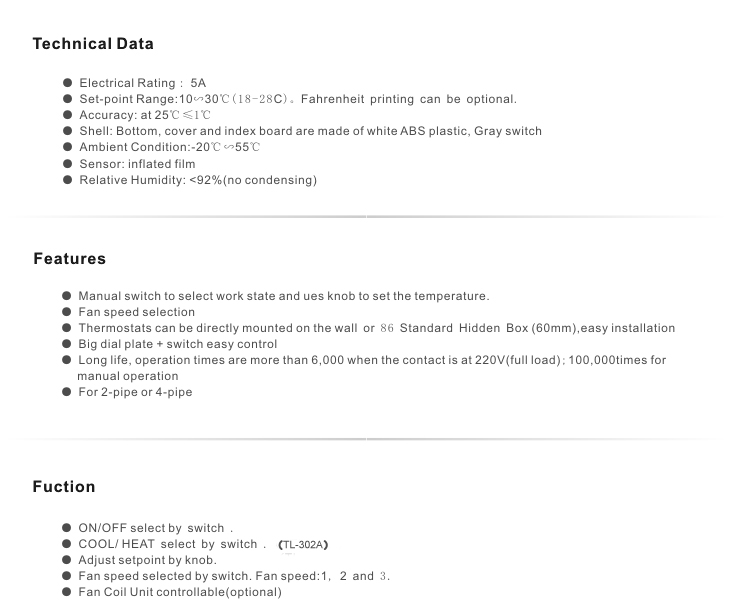

Technical Data


● Electrical Rating : 5A
● Set-point Range:10∽30℃(18-28C)。Fahrenheit printing can be optional.
● Accuracy: at 25℃≤1℃

● Shell: Bottom, cover and index board are made of white ABS plastic, Gray switch
● Ambient Condition:-20℃∽55℃

● Sensor: inflated film
● Relative Humidity: <92%(no condensing)


Features

● Manual switch to select work state and ues knob to set the temperature.

● Fan speed selection

● Thermostats can be directly mounted on the wall or 86 Standard Hidden Box (60mm),easy installation

● Big dial plate + switch easy control

● Long life, operation times are more than 6,000 when the contact is at 220V(full load);100,000times for manual operation

● For 2-pipe or 4-pipe.

Fuction

● ON/OFF select by switch .

● COOL/ HEAT select by switch .（TL302A）

● Adjust setpoint by knob.

● Fan speed selected by switch. Fan speed:1, 2 and 3.

● Fan Coil Unit controllable(optional)
