Product Introduction

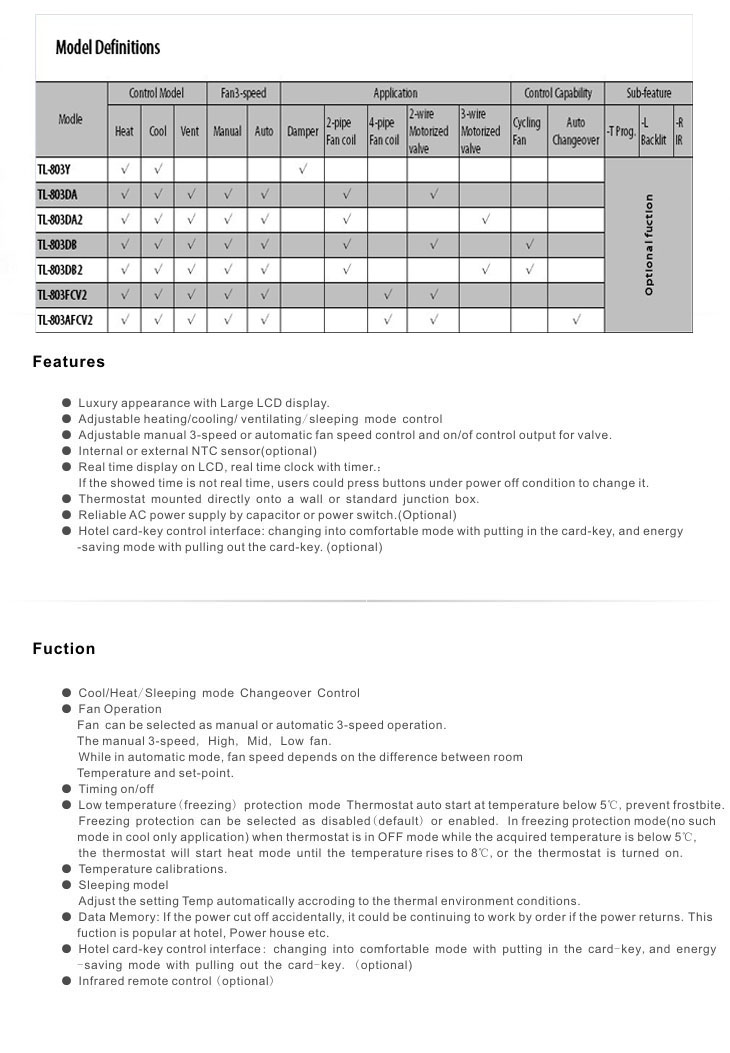

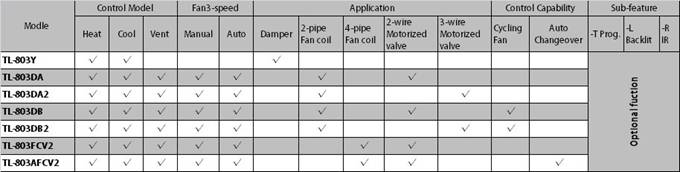

Model Definitions

Technical Specification

● Sensor: NTC

● Power supply: 220V/AC, 110VAC, 24VAC 50/60HZ
● Load Current: 3A
● Set-point Range:10∽30℃
● Accuracy: at 25℃≤1℃
● Power consumption:≤1.5W

● Shell: :Fire retardant PC ABS
● Ambient Condition:-10℃∽55℃
● Relative Humidity: <92%(no condensing)

● Cycle times: 150,000 times

● Dimension: 86*86*12mm (H*W*D)

● Communication Connection:RS485, M-bus(optional)

● Modulating Output:0-10 Vdc or 4-20mA(KTH204M); or 3-point Floating;KTH204Y (Optional)

● Protection IP: 20

● Control Performance: ON/OFF control

Fuction

● Cool/Heat/Sleeping mode Changeover Control

● Fan Operation

Fan can be selected as manual or automatic 3-speed operation.

The manual 3-speed, High, Mid, Low fan.

While in automatic mode, fan speed depends on the difference between room

Temperature and set-point.

● Timing on/off

● Low temperature(freezing) protection mode

Thermostat auto start at temperature below 5℃, prevent frostbite.

   Freezing protection can be selected as disabled(default) or enabled. In freezing protection mode(no such mode in cool only application) when thermostat is in OFF mode while the acquired temperature is below 5℃, the thermostat will start heat mode until the temperature rises to 8℃ or the thermostat is turned on.

● Temperature calibrations.

● .Sleeping model

       Adjust the setting Temp automatically accroding to the thermal environment conditions.

● Data Memory: If the power cut off accidentally, it could be continuing to work by order if the power returns. This fuction is popular at hotel, Power house etc.

● .Hotel card-key control interface: changing into comfortable mode with putting in the card-key, and energy-saving mode with pulling out the card-key. (optional)

● .Infrared remote control (optional)
